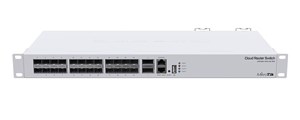

CRS326-24S+2Q+RM

Our fastest switch for the most demanding setups
Call for pricing

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS


Specifications

Details
Product codeCRS326-24S+2Q+RM
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650 MHz
Dimensions443 x 200 x 44 mm
RouterOS license5
Operating SystemRouterOS or SwitchOS
Size of RAM64 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C

Powering

Details
Number of AC inputs2
AC input range100-240
Max power consumption69 W
Max power consumption without attachments42 W
FAN count3

Ethernet

Details
10/100 Ethernet ports1

Fiber

Details
SFP+ ports24
Number of 40G QSFP+ ports2

Peripherals

Details
Serial console portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Certification & Approvals

Details
CertificationCE, EAC, ROHS
IPIP20
